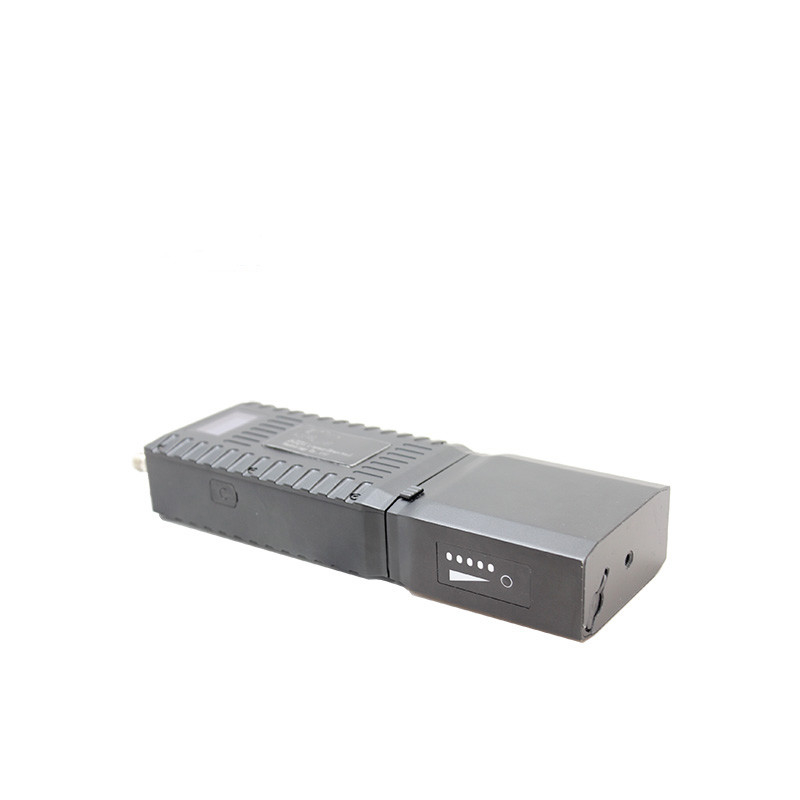

ZKMANET3151 Handheld IP Mesh Radio, 300-3800MHz, Black, Frequency Hop Select

Name: ZKMANET3151 Handheld IP Mesh Radio, 300-3800MHz, Black, Frequency Hop Select
Brand: Zhongke Lianxun (Shenzhen) Technology Co., Ltd
SKU: ZKManet3151
Price: 549.00 USD
Availability: InStock

제품 세부 정보

원래 장소: 선전

브랜드 이름: ZKMANET

인증: CE

모델 번호: ZKManet3151

문서: 제품 설명서 PDF

지불 및 배송 조건

최소 주문 수량: 1

가격: USD 99~999

포장 세부 사항: 카튼

배달 시간: 10 일

지불 조건: L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram

공급 능력: 매년마다 1000개 부분

최고의 가격을 얻으십시오

제품 세부 정보

제품 설명

강조하다:
                                                                                                                                                                                                                                                                                Black Handheld IP Mesh Radio, 3800MHz Handheld IP Mesh Radio, Frequency Hop Handheld IP Mesh Radio


빈도:	300-3800MHz	대역폭:	2.5/5/10/20MHz
무선 주파수 채널:	2T2R	인터페이스:	HDMI WIFI BD GPS
무게:	1.2 킬로그램	차원:	246.58242mm
적용:	데이터 전송

빈도:	300-3800MHz
대역폭:	2.5/5/10/20MHz
무선 주파수 채널:	2T2R
인터페이스:	HDMI WIFI BD GPS
무게:	1.2 킬로그램
차원:	246.58242mm
적용:	데이터 전송

ZKMANET3151 Handheld IP Mesh Radio, 300-3800MHz, Black, Frequency Hop Select

ZKMANET3151 Handheld IP Mesh Radio

300-3800MHz Frequency Range with Frequency Hop Select

Key Specifications

Attribute	Value
Frequency	300-3800MHz
Bandwidth	2.5/5/10/20MHz
RF Channel	2T2R
Interface	HDMI WIFI BD GPS
Weight	1.2kg
Dimension	246.58242mm
Application	Data transmission

Product Overview

The ZKMANET3151 is a robust, FPGA-based mesh self-organizing network device designed for versatile communication needs. This handheld IP mesh radio supports multiple communication modes and adapts seamlessly to various operational scenarios.

Key Features

Integrated design for convenient carrying and use
HDMI interface supporting video input
WI-FI connection and GPS/BD positioning support
Voice intercom capability
Supports point-to-point, point-to-multipoint, and many-to-many communication
Adaptive transmission rate of 1-100+Mbps
Lithium battery with ≥4 hours usage time
Full duplex bidirectional data transmission
IP66 protection level for high reliability
One-click operation with no manual configuration required

Technical Parameters

RF Parameters

Frequency	300~3800MHz (Customizable)
Working Bandwidth	2.5/5/10/20MHz (Customizable)
RF Channel	2T2R, 2*2MIMO
Transmit power	4W (adjustable)
1 hop communication distance	≥30KM

Network Parameters

Number of nodes	10 (Customizable)
Number of hops	≥8 hops with ≤30% bandwidth loss
Networking method	Star/linear/mesh/hybrid dynamic networking
Single hop time delay	Average ≤24ms@20MHz
WIFI	2.4/5.8G
Positioning	GPS/BD
Wireless bandwidth	≥50Mbps/20MHz (2*2MIMO)
Encryption	DES, AES128, AES256 (optional)

Physical Characteristics

Dimension	246.58242mm
Weight	1.2kg (with battery)
Working Temperature	-40ºC to +70ºC
IP Rating	IP66

Electrical Characteristics

Power supply	DC21V
Power dissipation	<12W
Battery size	2.6Ah

Interface Panel

Applications

About ZKMANET Technology

Established in 2005, ZKMANET Technology is a high-tech R&D enterprise specializing in wireless broadband communication products for emergency communication, military applications, and intelligent communication systems for special robots.
