43dBm 82Mbps Multi-Network Mode Integrated Vehicle Base Transceiver

Name: 43dBm 82Mbps Multi-Network Mode Integrated Vehicle Base Transceiver
Brand: Zhongke Lianxun (Shenzhen) Technology Co., Ltd
SKU: ZKManet7771
Price: 3,499.00 USD
Availability: InStock

제품 세부 정보

원래 장소: 첸젠, 중국

브랜드 이름: ZKMANET

인증: CE, ISO9001

모델 번호: ZKManet7771

문서: 제품 설명서 PDF

지불 및 배송 조건

최소 주문 수량: 1

가격: USD 2999~3999

포장 세부 사항: 갈색인 통

배달 시간: 5~8 근무일

지불 조건: 전신환, 웨스턴 유니온

공급 능력: 매년마다 10000개 부분

최고의 가격을 얻으십시오

제품 세부 정보

제품 설명

강조하다:
                                                                                                                                                                                                                                                                                                                Integrated Vehicle Base Transceiver, 82Mbps Base Transceiver


워킹 모드:	MESH/3GPP R9 프로토콜	대역폭:	2/5/10/20/40MHz
무선 주파수 채널:	4T4R	출력 전력:	43dBm
범위:	10~15KM	자료 비율:	82Mbps
암호화:	AES	와이파이:	2.4g/5.8g

워킹 모드:	MESH/3GPP R9 프로토콜
대역폭:	2/5/10/20/40MHz
무선 주파수 채널:	4T4R
출력 전력:	43dBm
범위:	10~15KM
자료 비율:	82Mbps
암호화:	AES
와이파이:	2.4g/5.8g

43dBm 82Mbps Multi-Network Mode Integrated Vehicle Base Transceiver

Key Specifications

Attribute	Value
Working Mode	MESH/3GPP R9 protocol
Bandwidth	2/5/10/20/40MHz
RF Channel	4T4R
Output Power	43dBm
Range	10~15KM
Data Rate	82Mbps
Encryption	AES
WIFI	2.4G/5.8G

Product Overview

The ZKManet7771 is a high-performance, rack-mounted base station designed for emergency communication scenarios. It integrates MESH networking, LTE private networks, 4G public networks, Wi-Fi, and wired connections while supporting GPS/BeiDou positioning for comprehensive situational awareness.

Key Features

Rack-mounted design for easy installation and deployment
Supports vehicle power supply and utility power
LTE private network handheld access capability
Integrated WI-FI AP supports smart device access
Mesh self-organizing network device compatibility
4G network support
GPS/BeiDou positioning system
Remote management capabilities

Dimensions

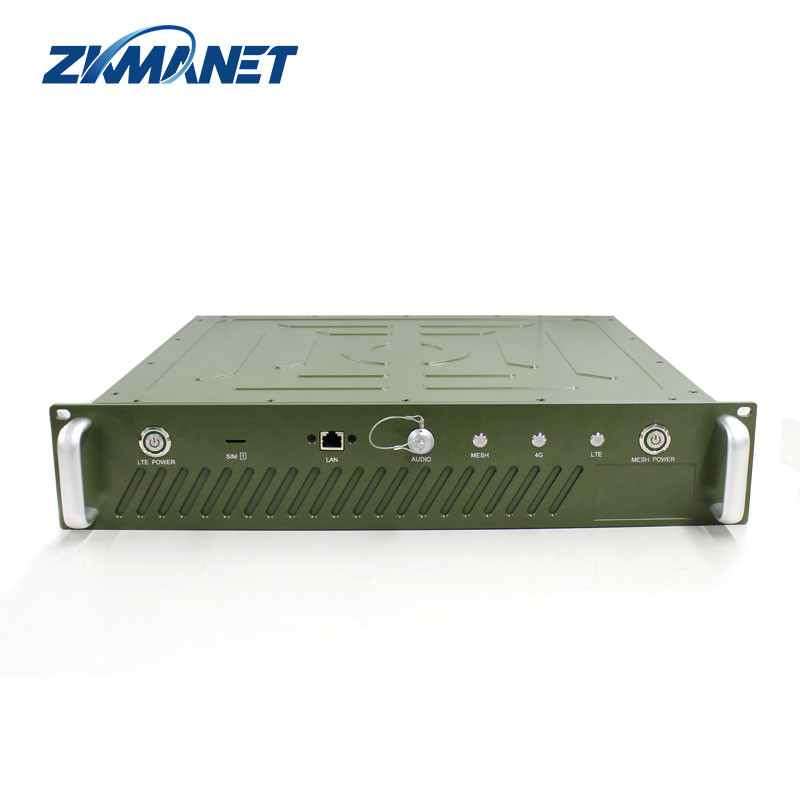

Control Panel Description

LTE Power Switch
4G Card Slot
Network Port
Intercom Interface
MESH Signal Indicator
4G Signal Indicator
LTE Signal Indicator
MESH Power Switch
MESH Antenna Interface 1
MESH Antenna Connector 2
Power Input Connector
Network Port
Serial port (spare)
BD antenna interface
4G antenna interface
WI-FI Antenna Interface
LTE Antenna Interface 1
LTE Antenna Interface 2

Technical Parameters

RF Parameters
Working Mode	Support MESH/3GPP R9 protocol
Frequency	MESH: 580MHz (customizable); LTE: 1.4GHz (customizable)
Bandwidth	2/5/10/20/40MHz
RF Channel	4T4R
Output Power	43dBm
Range	MESH: 10~15KM; LTE: ≥2KM
Network Parameters
Network Capacity	64 nodes; No less than 9 hops
Data Rate	LTE: uplink:>50Mbps; downlink:>15Mbps; MESH: 82Mbps
Encryption	AES128
Public Network	4G
Positioning	BD
WIFI	2.4/5.8G
Physical/Environment
Dimensions	43036089mm
Weight	<10kg
Working Temp	-40ºC~+65ºC
Electrical Parameters
Power Supply	AC220V/DC12V
Power Consumption	<100W
